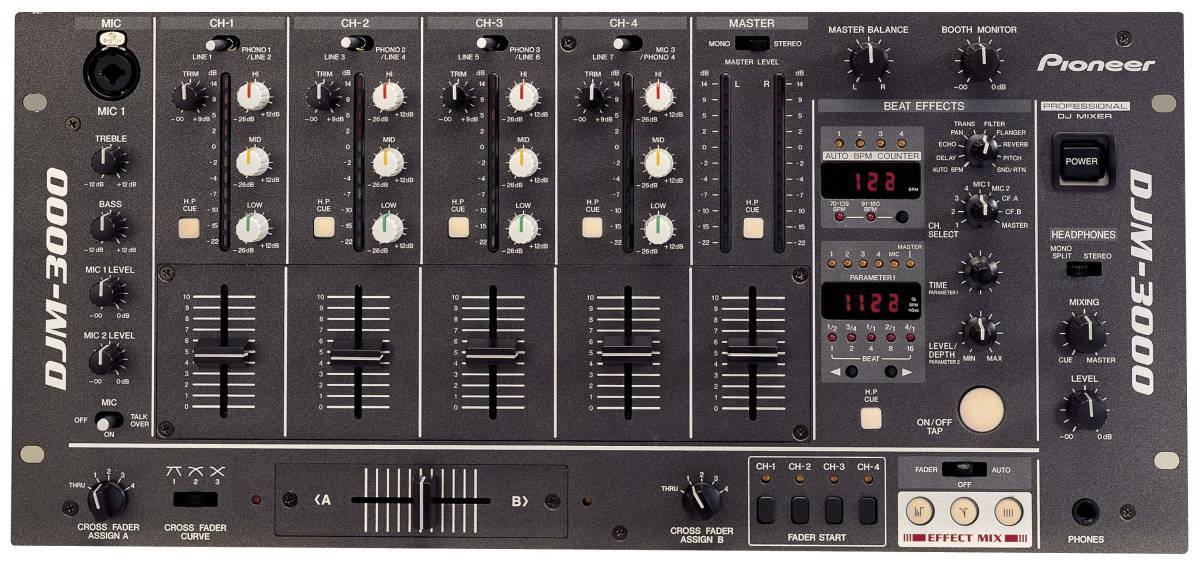

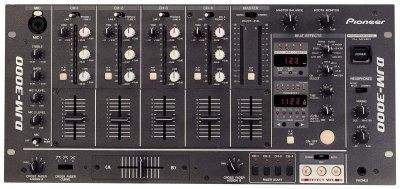

| Building upon the legendary capabilities
of Pioneer's DJM-600, the DJM-3000 is Pioneer's first Pro DJ rack
mount mixer in a 19" format. This re-sizing and rack-mounting
facility, coupled with numerous feature improvements, gives users
even more scope for creativity in their sets. |
THE PROFESSIONAL DJ MIXER
A Potent Mix |
The ability to mix tracks spontaneously and
seamlessly is central to a DJ's success and accordingly, this
unit answers the need for the highest possible levels of flexibility.
As well as inheriting effects such as Delay, Echo, Auto Pan,
Flanger, Pitch Shifter Reverb, Auto-Transform and Auto-Frequency
Filter from the DJM-600, this new model also incorporates
an industry-first: Effect Mix Mode. It utilizes 3 effects
(Echo, Zip and Roll) to transition from one song to the next
in a BPM Linked Operation. The Roll Mix Effect is new to Pioneer.
It effectively creates a drum build before segueing into the
next song. |
|
Flexible Functions |
The DJM-3000 boasts an Auto BPM Counter too, yet
another outstanding legacy of Pioneer's expertise in the mixing
arena. Recognized as the most accurate internal "Beat Per Minute"
counter in the industry, the Auto BPM automatically measures and
digitally displays a track's tempo from 70-180 BPM. This allows
for the instant synchronization of BPM and effect, enabling the
DJ to seamlessly merge one track into another.
For tracks that are difficult to measure, DJs can use the Tap button
to manually input the BPM and then refer to the Beat Indicator for
confirmation that the required beat is linked to the Auto BPM. With
the music beat in view in this way, DJs are able to mix tracks with
different beats much faster and more easily.
Linked to BPM, the DJM-3000 can add effects to each input (Channel,
Mic and Master) independently. Moreover, the DJ can perform quick
setting with the Beat Unit Switch button and adjust the precise
time parameters, or else control the balance between the effect
sounds and the original sounds by varying the mix ratio. Even when
using the fader, it's possible to leave just the effect sounds without
linking to BPM.
The DJM-3000 is equipped with a separate 3-band equalizer (HI/MID/LOW)
for each channel. This arrangement allows the stress of the instrument
sounds to be adjusted within the range -26dB to +12dB.
As a result of combining these user-friendly features within a club-toughened
shell, the DJM-3000 scales the heights of mixing technology today
and allows DJs to reach the summit of play-out performance. |
| Key
Features & Functions |
Digital Output
Most mixers only have analog output, so this
feature increases the options by allowing DJs to connect to
a digital PA system, MD or DAT player, or any other device
with digital input.
Effect Mix Mode
Easily and accurately effects phrases in a
BPM-linked operation.
Effects Section:
Delay
Produces repeat beat effect.
Echo
Repeated sounds that
fade for echo effect.
Auto-Pan
Automatically switches sounds between left and right speakers.
Auto-Transformer
Cuts sounds at requested beat. Auto Filter: creates effects
by manipulating sound frequencies.
Auto-Filter
Creates effects by manipulating sound frequencies.
Flanger
Produces an electronic wave effect. Reverb: a range of reverberation
effects.
Reverb
A range of reverberation effects.
Pitch Shifter
Manipulates music pitch within +/- 1 octave.
Send/Return
Connects available peripherals (external effects input/output).
Beat Effects
Effects dial for complete control over effect intensity.
Effects range enables sound effects on 1/4, 1/2, 1/1, 2/1,
4/1, 8/1 beats.
Auto BPM
• Beat measurement,
from 70-180 BPM.
• Automatic
synchronization between BPM and effect.
• Beat Indicator
shows when the required beat is linked to Auto BPM. |
|
| Additional
Features |
• Adjustable Talk Over level control
- mutes all levels apart from microphone.
• Mic Switch (Mic Off/Mic On/Talk Over).
• 7 Line Inputs.
• 4 Turntable Inputs.
• Switchable Phono/Line Inputs.
• 4 Fader Start Inputs.
• 3 Mic Inputs (1 x Neutric, 2 x 1/4 inch).
• Headphone Monitor Split/Headphone auditioning.
• Recording outputs.
• Reinforced headphone jacks.
• Frequency Response of 20Hz-20kHz (CD).
• Signal to Noise Ratio 87db (CD).
• Total Harmonic Distortion Rate 0.02% or less (CD).
Optional Rotary Faders
Pioneer now gives the DJ the option to change the faders on
the DJM-3000 to rotary faders. To purchase this option just
contact your local PRO DJ dealer and quote DJC-3000RV - the
rotary fader option should be installed by a Pioneer approved
service center. |
|
| Specifications
(US) |
| General |
| Power requirements |
AC 120V, 60 Hz |
| Power consumption |
41 W |
| Weight |
14.7 lbs. |
| Dimensions |
19.3" (W) x 8.8"
(D) x 4.3" (H) |
| Audio Section |
| Frequency response |
20Hz to 20kHz (CD) |
| Signal-to-noise ratio |
87 dB or more |
| Distortion Ratio |
0.02% or less |
| Specifications
and design are subject to possible modification without notice |
|
|
