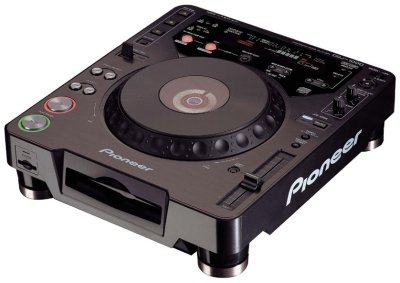

Introducing
the CDJ-1000, the art of turntablism in the digital domain. Powering
down, scratching, or doing a backspin, It's all possible with the
CDJ-1000. Featuring the world's largest touch sensitive jog dial,
the CDJ-1000 allows you to treat a CD the same way you'd treat a vinyl
record. Breakthrough, yes. A must-have, absolutely. The CDJ-1000,
welcome to the future.
|
DIGITAL VINYL TURNTABLE ™
| Performance
Control |
Hot Cue (sampler)
Memorizes up to 3 cue point’s per CD.
These points can then be recalled by hitting either of the
A, B or C buttons. This function can also be used like a mini
sampler for vocals, stabs, or breaks, adding that touch of
creativity to any DJ set.
Reverse
Instant reverse is controlled by using a flickable
switch. With no loss of tempo or pitch, it can be used immediately
within any track without having to stop or start. Reverse
can also be used with the Hot Cue and the Loop Sampler providing
endless combinations and effects.
Real Time Seamless Loop
A quick and simple way to set a loop while
a track is playing. Once the loop is set, it can then be looped
continuously or until the ReLoop / Exit button is pressed.
When released, the track continues playing without any pause.
The loop can be re-trigged at any time by hitting the ReLoop
button
Loop In / Out Adjust
Another world first from Pioneer - is the ability
to adjust both the In and Out points of a loop stored in memory.
So now fine tuning a loop is both quick and easy. Loop-In
adjust is only available on the CDJ-1000.
Reloop
Hitting the Reloop button instantly takes you
back to the beginning of the loop stored in the CDJ-1000’s
memory. This can be done either while the loop is playing
or at any time while the current track is playing. Clever
use of Reloop can create some sample like effects. The same
loop is always stored in memory until replaced with a new
loop.
|
|
| Memory |
MMC - MultiMediaCard
The CDJ-1000 has a memory feature that let’s
you store Wave Data as well as Cue and Loop points. The data
can be stored on a removable memory card (MMC) or the players
internal memory. The removable MMC card can also be used in
any CDJ-1000, so once you’ve stored your favorite cue
and loop points they’re there for life. The CDJ-1000
also has a feature that allows you to duplicate MMC cards.
(Multimedia Card (MMC) is not supplied with the CDJ-1000.)
Wave Data
CD Wave data is always saved on to the MMC
when inserted and then appears instantly.
Cue / Loop Memory
Once you set a cue or loop point you can save
it to either the internal memory or MMC card by hitting this
button.
Delete
Gets rid of those Cue or Loop points that you
shouldn’t have bothered saving in the first place.
Call
A quick and easy way to scroll through saved
cue and loop points. |
|
| CD Control |
CD Control Buttons
High Quality Aluminium buttons – Track
Search, Search, Cue and Play / Pause.
Jog Dial
Cue your CD’s with the world’s lar
gest touch sensitive jog dial (7” / 206mm diameter) designed
to emulate the control characteristics of a Vinyl Turntable,
together with all the features from Pioneer’s industry
standard CDJ r ange of CD players.
Pitch Bend
Is used to either speed up or slow down the
tempo of the music depending the direction the jog dial is
rotated – either forward or reverse
Jog Mode
The CDJ-1000 can be set in either Vinyl or
CDJ mode. In CDJ mode, the jog dial functions just like a
Pioneer CDJ player, but without the touch sensitivity.
Scratch Play / Cue
When the CDJ-1000 is in vinyl mode, the top
of the jog dial functions just like a Vinyl Turntable. Pressing
down stops the music and allows you to scratch or cue your
track by rotating the jog dial in either direction.
Vinyl Speed Adjust Touch/Brake
This allows adjustment in the speed at which
the CD slows down until it stops.
Vinyl Speed Adjust Release/Start
This allows adjustment of the speed at which
the CD returns to normal playback speed.
|
|
| Tempo |
Master Tempo
Pioneer’s Master Tempo locks the pitch
of the track even when you change the speed. You can speed
up or slow down the beat without any noticeable difference
in how the vocal and instruments sound.
Tempo Control
A new 100mm linear high precision slider connected
to a 0.02% (at +/- 6%) adjustment indication on the display
panel. Giv es the DJ’s that total control and ensures
that the tempo adjustment is easy and accurate.
Tempo Control Range
Ranges of +/- 6%, +/-10%, +/-16% and +/-24%
can be assigned to the Tempo Control slider to offer a greater
range of adjustment than on any of the pr evious Pioneer CDJ’s.
Tempo Control Reset
Resets the tempo to 0% or original tempo of
the track regardless of the slider position. The button has
been recessed to prevent accidental selection.
Eject Button & CD Lock
The CDJ-1000 does have a guard to prevent you
from accidentally pressing it the eject button. The CD is
locked until the track is stopped. This can be deactivated
as well if you are looking to do quick mixes.
Multi-Read Format
The CDJ-1000 can read CD, CD-R and CD-RW disks.
Front Loading
Loading CD’s without having to open doors
or trays makes swapping discs and selecting tracks that much
faster. It also helps to keep dirt and any nasty substances
out of the CD’s working parts. |
|
| Cue Functions |
Auto Cue
This is the fastest way to find the beginning
of a track. The sound level can also be changed to suit your
style of music (-36db to –78db). There is also an option
to turn it off if you prefer to cue up your CD tracks manually.
Manual Cue
Cue points can be set anywhere on the CD using
either the Vinyl or CDJ mode. Adjustment is made by using
either the jog dial or manual search buttons. The cue point
is automatically stored in the internal memory (If MMC is
inserted in CDJ-1000, the cue point is automatically stored
in the MMC.) until it is overwritten with a new cue point.
(Jog resolution for both Vinyl and CDJ modes - 135 frames
per revolution / 75 frames = 1 second)
*If a Multimediacard (MMC) is inserted into
the CDJ-1000, the cue point is automatically stored in the
cards memory.
Real Time Cue
A cue point can be set on the fly and stored
into the internal memory by just simply hitting the In / Real-time
cue button.
|
|
| Pioneer Offers
More! |
Pioneer Offers More!
Fader Start / Back Cue Start When the CDJ-1000
is used with the DJM-600, DJM-500, DJM-300 or DJM-300S mixer,
you can start the music by sliding the cross fader. By sliding
the fader back, it will return the CDJ-1000 back to the previously
selected cue point.
Built For The Professional DJ
To prevent accidental CD ejection or loss of
mains power, the CDJ-1000 has safety guards around the power
and eject buttons together with a locking feature.
Relay Play
Connecting two CDJ-1000’s with a standard
3.5mm mini-plug cable allows one unit to be put on standby
whilst the other plays. Relay Play automatically starts the
second player enabling them to play 'back to back' to give
you endless music play.
Legato Link Conversion For High Quality
Sound
Equipped with Pioneer’s wide r ange technology–
Legato Link Conversion. The CDJ-1000 is capable of reproducing
sound frequencies above 20kHz, which are lost during normal
CD-format playback. Not only does this give great sound reproduction
but sounds closer to the original recording and more analog
like vinyl.
Shock-Proof Memory and Anti-Vibration Construction
Sound jumps or skipping is prevented by using
a 16 second shock-proof memory for normal CD play (minimum
of 10 seconds if scratching and reading wave data at the same
time in Vinyl mode).
Anti-Vibration
Oil-dampened floating suspension prevents sound
skipping, even when the player is subjected to impact during
use or vibrations generated from high volume music and low
frequency bass.
Digital Output
The CDJ-1000 is equipped with a switchable
on/off
digital output (phono) which can be utilized for studio use. |
|
| Specifications
(US) |
| System: |
Compact Disc Digital Audio System |
| Disc Format: |
CD,CD-R and CD-RW |
| Frequency Response: |
4 Hz-20kHz |
| Signal-to-Noise Ratio: |
115 dB or more (EIAJ) |
| Total Harmonic Distortion: |
0.006% (EIAJ) |
| Audio Output: |
2.0 V |
| Power Requirements: |
AC 120 V
60 Hz |
| Power Consumption: |
33 W |
| Net Weight: |
16 lbs
9 oz |
| Dimensions: |
12-5/8"(W) x 14-9/16"(D)
x 4-1/8"(H) |
|
|
