| To
ensure the widest possible music-making flexibility, the DJM-600 is
equipped with an industry-first auto beat sampler. The sampler easily
and accurately samples phrases in a BPM-linked operation along with
an improved auto beat effector. In combination with Pioneer's CDJ
Series, this advanced mixer gives DJs everything they need to make
party music really come alive. |

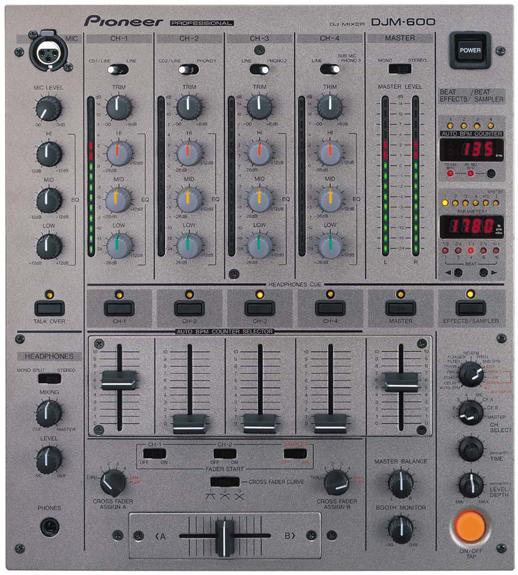

THE PROFESSIONAL DJ MIXER
AUTO
BPM COUNTER
Equipped with a counter that automatically measures and digitally
displays a track's BPM measurement range:
70-139 / 91-180 / 71-180 / Manual
The DJM-600 provides a visual confirmation of a track's tempo
to allow the user to merge one song into another smoothly. Also,
BPMs of tracks that are difficult to measure can be manually
input by tapping on the TAP button. |
 |
|
|
AUTO
BEAT SAMPLER
This is a new DJ function that allows
you to sample your favorite sources and play them back easily
at the touch of a button. The BPM is measured digitally and
recorded automatically exclusively for designated beats
( 1 / 2 / 4 / 8 / 16 ) beats,
Maximum interval: 6 seconds.
|
 |
If set to the
Stand-By mode when no sound is present, the function automatically
starts and stops recording in response to the presence and absence
of the input signal and achieves the correct sampling with perfect
timing. What's more, the user can edit the end position, making
possible a wide diversity of playback effects by making use
of three playback mode options and the cross fader start.
|
Sampler
info:
Sampling rate: 44.1 kHz
Resolution: 16 bit stereo
A/D converter 20 bit
Sampling time 8 seconds |
|
•SINGLE PLAY: Plays back
the recorded sound once only when the button is being pressed.
•LOOP PLAY: Plays back the recorded sound repeatedly when
the button is pressed.
•STRETCH LOOP PLAY: Extends or shortens the recorded sound
in accordance with the mixed track's BPM and plays back the
sound repeatedly. |
|
AUTO
BEAT EFFECTOR
Linked to BPM, the DJM-600 can add effects to each CH, MIC and
MASTER independently. The user can produce music that makes
full use of high-level DJ techniques by performing quick setting
with the Beat Unit Switch button, adjusting the precise time
parameters, or controlling the balance between the effect sounds
and the original sounds by varying the mix ratio. Moreover,
even when using the fader, it is possible to leave just the
effect sounds without linking to BPM.
|
•
DELAY: Repeats a sound once. The user can set the delay to their
desired tempo.
• ECHO: Repeats a sound several times. The user can set
the echo sound to their desired tempo.
• AUTO PAN: Automatically shifts the sound to the right
and left. Also capable of short auto pan sequences that would
be impossible via manual operation.
• AUTO TRANS:
Periodically cuts the sound.
• AUTO FILTER:
Periodically varies the sound color.
• FLANGER: Periodically reproduces a sound effect resembling
a jet airplane ascending and descending.
• REVERB: Reproduces a reverberating sound effect.
• PITCH SHIFTER: Allows the interval to be freely varied
throughout a range of +/-1 octave. With this, the user can compensate
for interval changes when using analog turntables or for tempo
changes when different makers' CD players are used. Additionally,
choruses can be made by employing mix ratios.
• EXTERNAL EFFECT INPUT (SEND/RETURN): Allows the user
to connect the mixer to an external effector or sampler, etc. |
 |
|
HEADPHONE
MONITOR SPLIT
When the Headphone Output switch
is set to MONO SPLIT, the right channel becomes the master and
the left channel becomes the CH sound. Choosing Plural with
the headphone cue, the user can also hear mixed sound. Moreover,
this function can perform right and left level adjustment, thereby
making monitoring easier.
FADER START PLAY
Connected to the CDJ Series, the DJM-600 can
begin playback of a track using the sliding cross fader or the
channel fader. It can mix tracks without creating spaces by
setting the stand-by track's cue point and performing a single-action
cut-in. Since it returns to the cue point via the back fader
alone, sampler-style playback is also possible. Start/back
play of sources recorded using the built-in sampler is also
possible using the cross fader.
EQUALIZERS
The DJM-600 is equipped with a separate HI/MID/LOW 3-band equalizer
for each channel. This arrangement allows the stress of the
instrument sounds to be adjusted within the range -26dB
to +12dBfor
an improvement of about 100% (Pioneer comparison) in sound extraction. |
|
OTHER FUNCTIONS
• CROSS FADER CURVE:
Choose from three types of cross fader start-up option.
• TALK OVER:
Mutes -14db all levels apart from the microphone.
• PEAK LEVEL METER: Allows the user to instantly determine
the source input condition for each channel to make possible
certain operation without loss time.
• TRIM: Track input level composition is available. This
function is compatible with diverse sound sources.
• INDEPENDENT MONITOR SWITCH: Enables independent or simultaneous
monitoring of each CH, MIC, MASTER and EFFECT.
• BOOTH MONITOR OUTPUT: Utilizing independent output terminals
for booth monitor use, this function allows the sound volume
to be independently controlled at the upper surface.
• Recording outputs (RCA) (New)
• All faders, knobs, volume controls, buttons, etc., are
made to
professional-grade SS-use high-durability specifications and
designed to stand up to hard use.
|
|
| Specifications |

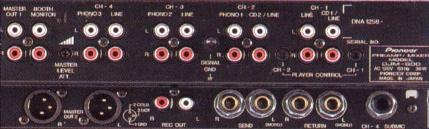

| Input
Terminals |
| CD
/ Line |
–14dBV
(200mV) / 22kW |
| Phono |
–54dBV
(2mV) / 47kW |
| Main
Mic |
–54dBV
(2mV) / 3kW |
| Sub
Mic |
–60dBV
(1mV) / 3kW |
| Return |
–14dBV
(200mV) / 22kW |
| Output
Terminals |
| Master
Out1 (RCA) |
0dBV
(1V) / 1kW |
| Master
Out2 (XLR) |
4dBm
(1.23V) / 600W |
| Rec
Out (RCA) |
–10dBV
(1V) / 1kW |
| Booth
Monitor |
0dBV (1V) /1kW |
| Send |
–14dBV
(1V) / 1kW |
| Phones |
0dBV (1V) / 22W |
| Frequency
Characteristics |
| CD
/ Line / Phono |
20Hz
to 20kHz |
| Signal
To Noise Ratio |
| CD
/ Line |
87dB
(with effects off) |
| Phono |
77dB |
| Mic |
69dB |
| Total
Harmonic Distortion Rate |
| CD
/ Line / Phono |
Below
0.02% |
| Cross
Talk |
Over
70db |
| Channel
Equalizer |
| Hi |
+12dB, –26dB (13kHz) |
| Mid |
+12dB,
–26dB (1kHz) |
| Low |
+12dB, –26dB (70Hz) |
| Microphone
Equalizer |
| Hi |
+12dB, –12dB (10kHz) |
| Mid |
+12dB,
–12dB (1kHz) |
| Low |
+12dB, –12dB (100Hz) |
| Effector |
| Delay
and Echo |
1 to 3500mSec |
| Pan,
Trans, Filter & Flanger |
10
to 16000mSec |
| Reverb |
1 to 100% |
| Pitch |
0 to ±100% |
| Miscellaneous |
| Power
Requirements: |
AC
120V, 60 Hz |
| Power
Consumption: |
36
W |
| Net
Weight: |
14
lbs 9 oz
(6.6 kg) |
| Dimensions
(WxHxD): |
320x107x357.4
mm
(12-3/8 x 4-3/16 x 14-1/16 inch) |
 |
|
